Pressure Tanks

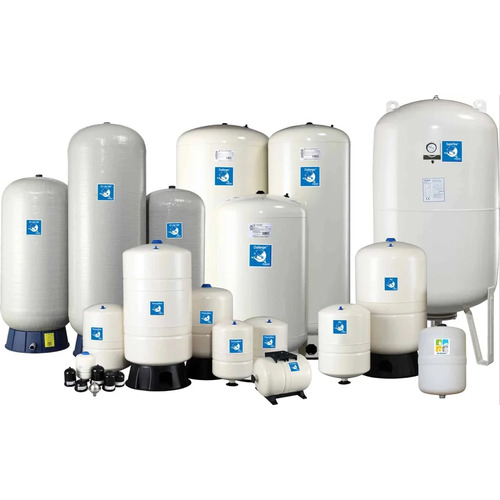

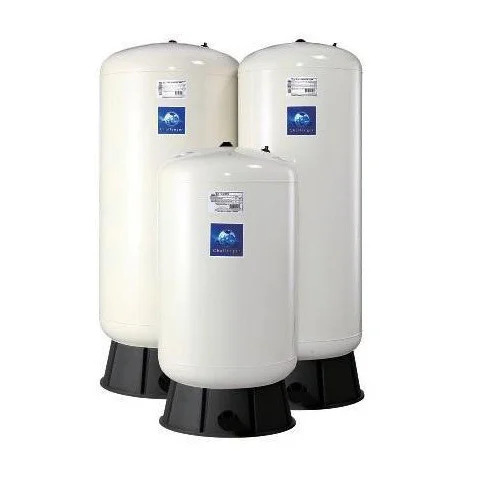

Hydropneumatic Tanks
We are one of the widely acclaimed manufacturers, suppliers, wholesalers, traders and retailers of Hydropneumatic Tanks. The offered Hydropneumatic Tanks are designed with a controlled action double diaphragm assembly. Our supplied Hydropneumatic Tanks are equipped with a clench ring which provides separation between the tank wall and diaphragm.
Features:- Leakage free air valve
- Epoxy primed paint finish
- Longer service life
Design Features:
- Patented CAD2 diaphragm technology
- NSF Standard 61, CE/PED, WRAS, ACS, Ev-razes, ISO:9001 & Govt. approved
- Stainless steel water connection
- Condensation reducing design
- Two part polyurethane, epoxy primed paint finish
- Leak free air valve cap sealed with closed cell form
- Comprehensive testing
- Low on maintenance
Applications:
- Booster systems
- Thermal expansion
- Heating expansion
- Irrigation systems
- Hydraulic hammer arresting
- Fire Fighting
Specifications:
| System Connection | 1/4” BSP Stainless steel elbow |
| Maximum Working Pressure | 150 psi/ 10 bar |
| Maximum Working Temperature | 194°F/90°C |
| Standard Pr-Charge | 1.4 bar |

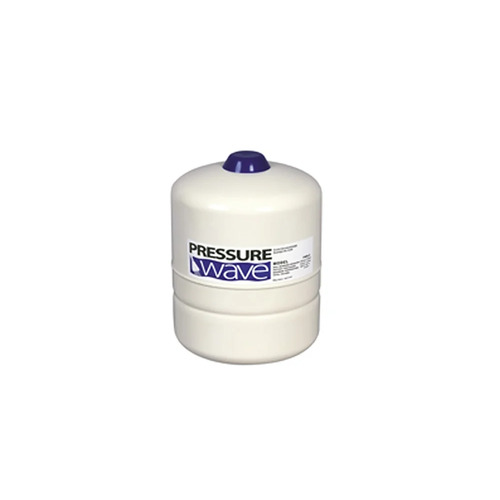

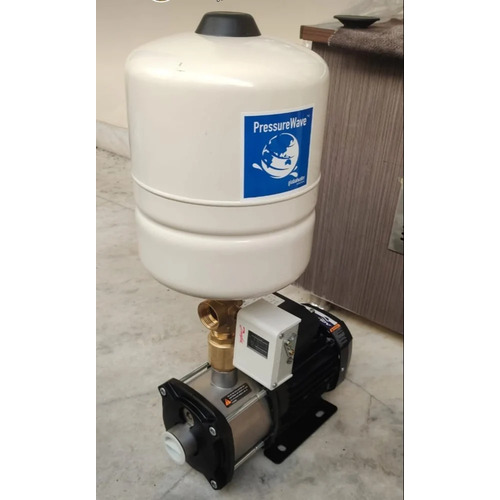

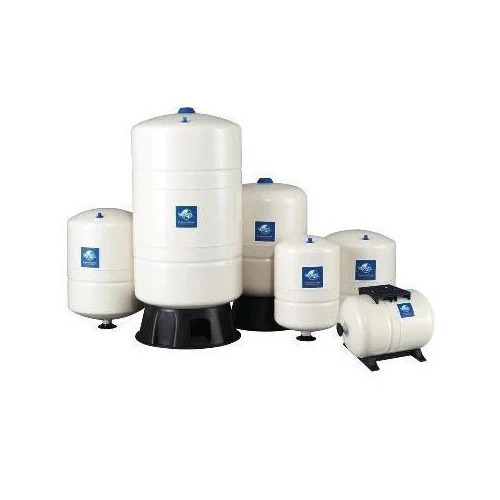

Pressure Wave Tank
We feel proud to introduce ourselves as one of the well-known manufacturers, suppliers, wholesalers, traders and retailers of Pressure Wave Tank. The offered pressure wave tank is equipped with air valve and o ring cap for preventing air leakages. Our supplied pressure wave tank is painted at the outside, by almond colored polyurethane paint.
Features:- Single diaphragm design
- Polypropylene liner
- Stainless steel water connection
Other Details:
- Single diaphragm design
- NSF Standard 61, CE/PED, WRAS, ACS, Ev-razes, ISO:9001 & Govt. approved
- Patented stainless steel water connection
- Virgin polypropylene liner
- Two part polyurethane, epoxy primed paint finish
- Leak free O-ring sealed air valve cap
- Comprehensive testing
- Low on maintenance
Applications:
- Booster systems
- Thermal expansion
- Irrigation systems
- Hydraulic hammer arresting
- Fire Fighting
Specifications:
| System Connection | SS 304, 1” |
| Standard Pr-Charge | 28 psi/1.9 bar |
| Maximum Working Temperature | 194° F/90° C |
| Maximum Working Pressure | 150 psi/ 10 bar |

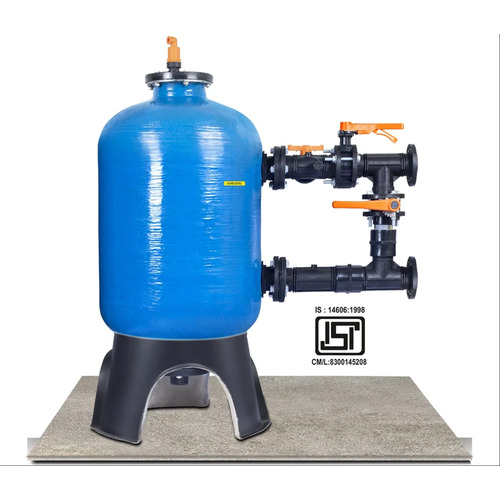

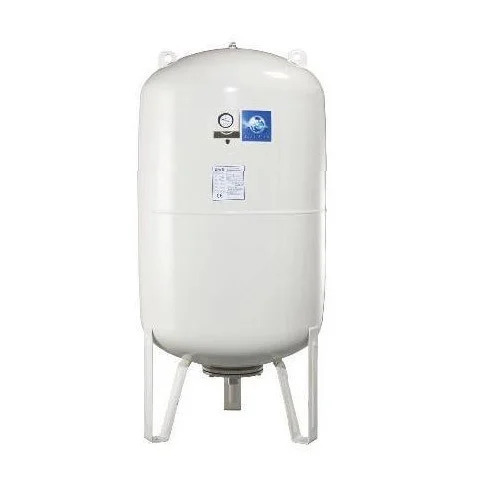

Pressure Vessel Tank
We are one of the leading manufacturers, suppliers, wholesalers, traders and retailers of Pressure Tank. The offered super flow pressure tanks are commonly used in irrigation systems, booster systems and firefighting systems. Our supplied super flow pressure tanks are designed with internal pressure gauge and interchangeable membrane.
Features:- Optimal working temperature and pressure
- Rugged construction
- Tiered design
Applications:
- Booster systems
- Thermal expansion
- Irrigation systems
- Hydraulic hammer arresting
- Fire Fighting
Specifications:
| Maximum Working Temperature | 194° F/90° C |
| Maximum Working Pressure | 10/16/25 bar |
